Filter Cartridges
High efficiency Filter cartidge
Shelco Filters' MicroVantage™ high efficiency filter cartridges are the ideal choice when high retention efficiency and outstanding value are essential. Our product range includes high efficiency and absolute rated melt blown depth and pleated filter cartridges to provide multiple options for the filtration process. The PD series polypropylene depth cartridges feature multi-zone construction to enhance dirt-holding capacity. The MicroVantage pleated polypropylene and glass fiber cartridge filters are designed with maximum surface area to optimize dirt-holding capacity, and service life. Each filter is manufactured in a clean room environment under a quality management system to meet the most stringent user requirements
Category List:
MicroVantage™ MPX Series - High Performance Pleated Polypropylene Filter Cartridges
• Absolute-Rated Beta 5000 (99.98%) retention efficiency
• 7.0 square feet (0.65 m2) of media surface area per 10" length
• 100% polypropylene construction offers wide range of chemical compatibility
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Micron ratings from 0.2 thru 50 and nominal lengths from 9-3/4” thru 40”
• Optional pre-flushed cartridges available for electronic and pharmaceutical applications
Product Image:
Category List:
MicroVantage™ MPA Series - Absolute-Rated Pleated Polypropylene Filter Cartridges
• Absolute-Rated Beta 5000 (99.98%) retention efficiency
• 5.6 square feet (0.52 m2) of media surface area per 10" length
• 100% polypropylene construction offers wide range of chemical compatibility
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Micron ratings from 0.2 thru 50 and nominal lengths from 9-3/4” thru 40”
• Various end cap configurations available to fit existing housings
Product Image:
Category List:
MicroVantage™ MPN Series - Nominally-Rated Pleated Polypropylene Filter Cartridges
• Nominally-Rated Beta 10 (90%) retention efficiency
• 5.6 square feet (0.52 m2) of media surface area per 10” length
• 100% polypropylene construction offers wide range of chemical compatibility
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Micron ratings from 0.2 thru 50 and nominal lengths from 9-3/4” thru 40”
• Various end cap configurations available to fit existing housings
Product Image:
Category List:
MicroVantage™ MGF Series - High Efficiency Glass Fiber Filter Cartridges
• High efficiency retention ratings
• Optimal surface area designed for maximum throughput and high dirt holding capacity
• Borosilicate microfiberglass media with polypropylene hardware construction offers wide range of chemical compatibility
• Rigid, molded cage protects pleated media and strengthens structural stability
• Micron ratings from 0.2 thru 30 and nominal lengths from 9-3/4” thru 40”
• Various end cap configurations available to fit existing housings
Product Image:
Category List:
MicroVantage™ PDA and PDH Series - Polypropylene Depth Filter Cartridges
• Absolute (99.9%) and high efficiency (90%) retention ratings
• Microfibers thermally bonded to rigid center core – provides greater stability under higher temperatures and differential pressures
• 100% polypropylene construction – meets FDA requirements
• Micron ratings from 0.5 thru 75 and nominal lengths from 9-3/4” thru 40”
• All components meet USP Class VI criteria for use in pharmaceutical applications
Product Image:
Category List:
MicroVantage™ MDP Series - High Performance Pleated Polypropylene Filter Cartridges
• Absolute-Rated Beta 5000 (99.98%) retention efficiency
• 7.0 square feet (0.65 m2) of media surface area per 10" length
• 100% polypropylene construction offers wide range of chemical compatibility
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Micron ratings 0.2 thru 50 and nominal lengths 9-3/4” thru 40”
• Produced in 10" segments for maximum strength and pleat protection
• Optional pre-flushed cartridges available for electronic and pharmaceutical applications
Product Image:
Category List:
Industrial Filter Cartridges
Complete range of industrial filter cartridges offer high performance, cost-effective solutions for every filtration challenge, including wound, melt-blown, pleated, resin-bonded fiber, stainless steel and carbon block cartridges.
Category List:
MicroSentry™ MS Series - Wound Filter Cartridges
• Precision winding patterns ensure accurate filtration ratings and high retention efficiencies
• Various fibers and core materials for compatibility with a broad range of chemicals and high temperature applications
• Suitable for filtration of liquids, compressed air and gases
• Available in standard 2 1/2" and 4 1/2" (BB Style) cartridge diameter configurations
• Micron ratings from 0.5 thru 150 and nominal lengths from 4-3/4” thru 40”
Product Image:
Category List:

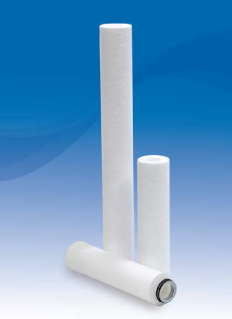

MicroSentry™ MB Series - Melt Blown Filter Cartridges
• Thermally bonded microfibers for economical and efficient filtration
• 100% Polypropylene construction provides for wide range of chemical compatibilities
• Graded density pore structure provides true depth style filtration for higher dirt holding capacity
• Available in standard 2 1/2" and 4 1/2" (BB Style) diameter configurations
• Micron ratings from 1 thru 100 and nominal lengths from 4-7/8” thru 40”
Product Image:
Category List:
MicroSentry™ MEE Series - Economical Pleated Filter Cartridges
• High surface area provides greater dirt-holding capacity, lower initial pressure drop and longer change-out intervals
• Constructed of layers of economical polyester and polypropylene blended media, laminated to provide depth filtration
• No resin binders to break down and contaminate the filtrate. 100% synthetic fibers with no surfactants that cause foaming
• Available in standard 2 5/8" and 4 1/2" (BB Style) diameter
• Washable and reusable - significantly reduces filtration costs (20 micron and larger)
• Micron ratings from 0.35 thru 50and nominal lengths from 9-3/4” thru 40”
Product Image:
Category List:
MicroSentry™ SS Series - Stainless Steel Filter Cartridges
• Ideal for high temperature applications up to 500°F (260°C) and high differential pressures up to 60 PSID
• 304L and 316L Stainless Steel construction for compatibility with a wide range of fluids
• 2 through 840 microns ratings for broad range of uses from fine filtration to straining
• Available in cylindrical and pleated configurations. Cleanable and reusable
• End cap configurations available in DOE, 222/Flat, 226/Flat, 1" MNPT or 1" FNPT fittings
• Nominal Length from 4-7/8” thru 40”
Product Image:
Category List:
MicroSentry™ SCB Series - Carbon Block Filter Cartridges
• Extruded activated carbon block filter. Minimal release of carbon fines
• High adsorptive capacity – effectively reduces chlorine and organic chemicals that contribute to undesirable tastes and odors
• Available in standard 2 3/4" and 4 1/4" (BB Style) diameter configurations
• 5 micron filtration - high retention efficiency
• Nominal lengths: 2-3/4" diameter - 9 3/4", 20”, 30”, 40". 4-1/4" diameter - 9 3/4", 20"
Product Image:
Category List:
MicroSentry™ R Series - Resin Bonded Filter Cartridges
• Resin bonded micro-fiberglass for economical and efficient filtration in high operating temperature and viscous fluids
• Gradient density construction provides enhanced dirt holding capacity and consistent retention efficiency
• Grooved exterior provides increased surface area for greater dirt holding capacity and longer service life
• Available with polypropylene, tin and stainless steel cores for maximum structural strength
• Micron ratings 0.5 thru 125 and nominal lengths 9-3/4” thru 40”
Product Image:
Category List:
Membrane Filter Cartridges
Shelco Filters' MicroVantage™ membrane filter cartridges are the premier choice when high purity and absolute retention are prerequisites for the filtration process. These premium performance cartridges are available with Polyethersulfone, Polysulfone, Nylon 6,6 and PTFE membranes and designed with the maximum surface area to optimize service life and reduce user costs. Each filter is manufactured and integrity tested in a state-of-the-art Class VI clean room under a stringent quality management system to ensure it meets the requirements for critical applications in the general industrial, beverage, electronics and pharmaceutical markets
Category List:
MicroVantage™ MAS-G Series - General Grade Polyethersulfone Membrane Filter Cartridges
• Manufactured in a Class 10,000 Clean Room environment for high purity
• 7.2 square feet (0.67 m2) of media surface area per 10" length
• Fully integrity tested to ensure reliable performance in critical applications
• 100% flushed with 18 megohm DI water for low extractables
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.03 thru 1.2 and nominal lengths from 9-3/4” thru 40”
Product Image:
Category List:
MicroVantage™ MAS-B Series - Beverage Grade Polyethersulfone Membrane Filter Cartridges
• Manufactured in a Class 10,000 Clean Room environment for high purity
• 7.2 square feet (0.67 m2) of media surface area per 10" length
• Fully integrity tested to ensure reliable performance in critical applications
• 100% flushed with 18 megohm DI water for low extractables
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.1 thru 1.2 and nominal lengths from 9-3/4” thru 40”
Product Image:
Category List:
MicroVantage™ MAS-E Series - Electronic Grade Polyethersulfone Membrane Filter Cartridges
• Manufactured in a Class 10,000 Clean Room environment for high purity
• 7.2 square feet (0.67 m2) of media surface area per 10" length
• Fully integrity tested to ensure reliable performance in critical applications
• 100% flushed with 18 megohm DI water to less than 5 ppb TOC
• Rapid rinse-up to 18 megohm resistivity and low extractables for use in ultrapure water
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.03 thru 0.65 and nominal lengths from 9-3/4” thru 40”
Product Image:
Category List:
MicroVantage™ MAN Series - Nylon 66 Membrane Filter Cartridges
• Manufactured in a state-of-the-art white room and Class 10,000 clean room for high purity
• 7.2 square feet (0.67 m2) of media surface area per 10" length
• Nylon 66 membranes provide electropositive charge to enhance particle removal through electrokinetic adsorption
• MAN grade cartridges are flushed and dried to ensure reliable performance in critical applications
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.1 thru 0.65 and nominal lengths from 9-3/4” thru 40”
Product Image:
Category List:
MicroVantage™ MAT Series - PTFE Membrane Filter Cartridges
• High surface area provides superior flow rates and minimizes system size requirements
• Constructed of Inherently hydrophobic PTFE membrane and polypropylene components
• Ideal for gas / vent applications and filtering of aggressive solvents and chemicals
• PTFE membrane and polypropylene component construction offers excellent chemical compatibility
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.1 thru 0.65 and nominal lengths from 9-3/4” thru 40”
Product Image:
Category List:
MicroVantage™ WGAS Series - Water Grade Polyethersulfone Membrane Filter Cartridges
• Manufactured in state-of-the-art white room environment for high purity
• 6.0 square feet (0.56 m2) of media surface area per 10" length
• 100% polypropylene construction offers wide range of chemical compatibility
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.3 thru 1.0 and nominal lengths from 9-3/4” thru 40”
• Available in common end cap configurations to fit most filter housings
Product Image:
Category List:
MicroVantage™ WGPS Series - Water Grade Polysulfone Membrane Filter Cartridges
• Manufactured in state-of-the-art white room environment for high purity
• 6.0 square feet (0.56 m2) of media surface area per 10" length
• Highly tapered asymmetric pore structure provides excellent flow rate and dirt holding capacity
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings from 0.03 thru 1.0 and nominal lengths from 9-3/4” thru 40”
• Available in common end cap configurations to fit most filter housings
Product Image:
Category List:
MicroVantage™ VGPS Series - Vent Grade Polysulfone Membrane Filter Cartridges
• Manufactured in state-of-the-art white room environment for high purity
• 6.0 square feet (0.56 m2) of media surface area per 10" length
• Highly tapered asymmetric pore structure provides excellent flow rate and dirt holding capacity
• Complies with Food & Drug Administration’s CFR criteria for food & beverage contact - Meets USP Class VI Biological Test
• Absolute micron retention ratings of 0.2 and nominal lengths from 9-3/4” thru 40”
• Available in common end cap configurations to fit most filter housings
Product Image:
