Single Cartridge Housings

Single Cartridge Filter Housings Industrial Single Cartridge Filter Housings

Designed for use with a single cartridge having a maximum diameter of 2-3/4” or 4-1/2” and in a choice of lengths from 10” to 30” to handle various flow rate applications.

CSF Series - Single Cartridge Filter Housings with Ring Nut Closure for SOE Cartridges

• 316L Stainless Steel construction with cast head and electro-polished sump suitable for a wide range of process requirements
• Accepts 222 or 226 connector cartridges with Fin or Flat ends
• Available with 3/4", and 1" in-line connections
• Ring nut closure for quick cartridge change outs
• Equipped with mounting bracket kit and wrench

Download Spec Sheet

Product Image:

FOS, FOSBN and FOC Series - Single Cartridge Filter Housings with Bolt & Nut Closure for Liquids

• Various materials of construction for wide range of process requirements: 304L or 316L stainless steel, Brass nickel plated head with 304L SS body, Cast Iron Head with a steel body
• Accepts Double Open-End (DOE) cartridges
• Available with 1/4", 3/8", 1/2", 3/4", and 1" connections
• Bolt-nut-closure design for quick cartridge change outs(T-handle optional)
• Knife edge seals at both end of cartridge housing eliminatepotential bypass

Download Spec Sheet

Product Image:

FAS and FAC Series - Single Cartridge Filter Housings with Bolt & Nut Closure for Air & Gases

• Various materials of construction for wide range of process requirements: 304L or 316L stainless steel, Brass nickel plated head with 304L SS body, Cast Iron Head with a steel body
• Accepts Double Open-End (DOE) cartridges
• Available with 1/4", 3/8", 1/2", 3/4", and 1" connections
• Bolt-nut-closure design for quick cartridge change outs(T-handle optional)
• Knife edge seals at both end of cartridge housing eliminatepotential bypass

Download Spec Sheet

Product Image:

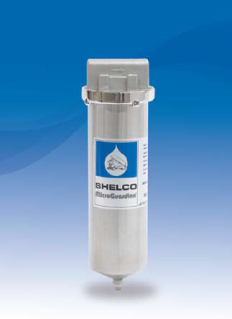

RH Series- Single Cartridge Filter Housings with Ring Nut Closure

• Various materials of construction for a wide range of process requirements: 316L stainless steel, Brass head with 304L Stainless Steel body
• Accepts Double Open End (DOE) cartridges (Internal O-ring (213) cartridge optional)
• Available with 1/2", 3/4" and 1" in-line connections for easy installation
• Ring nut closure for quick cartridge change outs
• Spring loaded knife edge seal provides positive sealing for variable length cartridges
• Supplied with mounting bracket kit and wrench

Download Spec Sheet

Product Image:

FLD Series- High Flow Single Cartridge Filter Housings with Ring Nut Closure

• Heavy duty 304L stainless steel construction for maximum durability
• Accepts 4 1/2" diameter (Big Blue style) Double Open-End (DOE) cartridges
• Designed for high temperature and high pressure applications
• Ring nut closure for quick cartridge change outs
• Spring loaded knife edge seal provides positive sealing for variable length cartridges
• Mounting bracket kit included for easy installation

Download Spec Sheet

Product Image:

SJCH Series- Single Jumbo Cartridge Filter Housings

• Heavy-duty 304L or 316L Stainless Steel construction for maximum durability and corrosion resistance
• Accepts single jumbo cartridge for easy installation and replacement
• V-band clamp or swing bolt closures for quick and easy cartridge change outs and secure sealing
• Available in three sizes to support flow rates up to 150 GPM
• Standard with pressure gauges, mounting legs and grounding lug
• 20 micron and above elements may be washed and reused

Download Spec Sheet

Product Image:
