HVAC Filtration
Pleated Filter
![](https://filterprocess.com/sites/default/files/dp-g13.jpg)
DP-g13een®
• MERV 13
• Moisture resistant beverage board frame
• 17.5 pleats per foot
• Damage resistant
• May qualify as a sustainable component for LEED/Green Building Initiative
• 1”, 2” and 4” depths available
![](https://filterprocess.com/sites/default/files/dp-g13.jpg)
![](https://filterprocess.com/sites/default/files/dp-max_0.jpg)
DP® / DP Max
• MERV 8
• 100% synthetic media
• Die cut beverage board frame
• 1”, 2” and 4” depths available (DP)
• 14.3 pleats per foot (2") (DP)
• 1”, 2”, 4” and 6” depths available (DP Max)
![](https://filterprocess.com/sites/default/files/dp-max_0.jpg)
![](https://filterprocess.com/sites/default/files/powerguard.jpg)
PowerGuard™
• MERV 11
• Super charged, electrostatically enhanced media
• 1”, 2” and 4” depths available
• Die cut beverage board frame
![](https://filterprocess.com/sites/default/files/powerguard.jpg)
![](https://filterprocess.com/sites/default/files/xtreme-plus.jpg)
XTREME+Plus®
• MERV 8 standard and high capacity
• 100% synthetic media
• Self-supported
• Damage resistant
• No metal
• Fully incinerable
![](https://filterprocess.com/sites/default/files/xtreme-plus.jpg)
![](https://filterprocess.com/sites/default/files/dp-high.jpg)
DP-65, DP-85, DP-95 High Efficiency
• Ultrafine fiberglass media
• 2” and 4” depths available
• Die cut beverage board frame
• Three efficiencies 50-55%, 75-80%, 80-85%
• DP-85, DP-95 recommended for low velocity applications
• 4" thick DP-65 provides highest efficiency available in a pleated filter operating at 500 FPM (50-55%)
![](https://filterprocess.com/sites/default/files/dp-high.jpg)
![](https://filterprocess.com/sites/default/files/dp-max.jpg)
DP4-SA - Side Access Filters
• Same construction as standard Type DP
• 4” depth available
• 1" header on top and bottom is designed for installation in side access systems
• Available in 25-30% and 35-40% efficiencies
![](https://filterprocess.com/sites/default/files/dp-max.jpg)
![](https://filterprocess.com/sites/default/files/dp1.jpg)

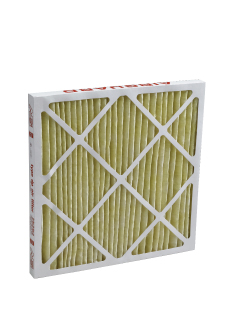

DP® 1
• Classified per U.L. Standard 900
• Ultrafine fiberglass media
• 1”, 2” and 4” depths available
• Non-flammable die cut board frame
• Available with Standard DP and DP Max pleat counts
• 35-40% efficiency
![](https://filterprocess.com/sites/default/files/dp1.jpg)
![](https://filterprocess.com/sites/default/files/dpht.jpg)
DPHT - High Temperature
• Operates up to 500°F
• Ultrafine fiberglass media
• 1”, 2” and 4” depths available
• Aluminized steel frame
• Available with Standard DP and DP Max pleat counts
• 35-40% efficiency
![](https://filterprocess.com/sites/default/files/dpht.jpg)
![](https://filterprocess.com/sites/default/files/dp-dpgt.jpg)
Type DPGT
• MERV 8
• Blend of multi-denier synthetic fibers
• Reinforced die cut beverage board frame
• 30-35% efficiency
![](https://filterprocess.com/sites/default/files/dp-dpgt.jpg)
![](https://filterprocess.com/sites/default/files/biopure.jpg)
Bio-Pure®/Bio-Pure® Max Pleat
• 1”, 2” and 4” depths available
• Available in 14.5 and 10 pleats per foot (2")
• 25-30% efficiency
![](https://filterprocess.com/sites/default/files/biopure.jpg)
Pads, Rolls & Media Frames
![](https://filterprocess.com/sites/default/files/gt-pads.jpg)
GT-Pads
• Mounts directly onto high efficiency barrier filters
• Also used as an independent filter
• Manufactured from spun fiberglass strands
• Fiberglass (4”)
![](https://filterprocess.com/sites/default/files/gt-pads.jpg)
![](https://filterprocess.com/sites/default/files/fiberglass-filter.jpg)
Fiberglass Filter Service Rolls and Pads
• Select from several grades
• 1”, 2”, 4” depths available
• 70-90% arrestance
![](https://filterprocess.com/sites/default/files/fiberglass-filter.jpg)
![](https://filterprocess.com/sites/default/files/permalast.jpg)
Permalast® Media
• Heavy weight fiber media
• 1”, 2” depths available
• Rigid, self-supporting
• Washable
• 50-65% arrestance
![](https://filterprocess.com/sites/default/files/permalast.jpg)
![](https://filterprocess.com/sites/default/files/service-frame.jpg)
Service Frame
• 22 gauge galvanized steel frame
• 1/2", 1”, 2” depths available
• Wire support grid - both sides
![](https://filterprocess.com/sites/default/files/service-frame.jpg)
![](https://filterprocess.com/sites/default/files/special-media.jpg)

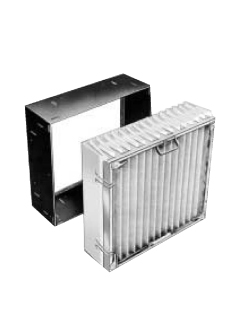

Specialty Medias
• Select from a variety of media and filters for specialized equipment or applications
• Lint and ink mist collection
• Replacements for AAF PL-24 and Auto-Airmat
• Special application media
![](https://filterprocess.com/sites/default/files/special-media.jpg)
![](https://filterprocess.com/sites/default/files/automaticroll.jpg)
Automatic Roll Filter Media
Choose from seven styles of media to fit major brands of auto roll equipment, including: Airguard, AAF, Air Maze, BLC, Cambridge, Carrier, Commercial, Continental, Camfil, MSA, Trane
Fiberglass Medias:
• Progressive density media construction
• 2-1/2" thick
• Scrim mesh netting backing for high tensile strength
• Adhesive coated for high dust holding capacity
• 70-90% arrestance
Synthetic Medias:
• 1/2", 1" depths available
• Scrim mesh netting backing for high tensile strength
• Dry and tackified medias
• 70-90% arrestance
Download Spec Sheet Download Spec Sheet Download Spec Sheet Download Spec Sheet
![](https://filterprocess.com/sites/default/files/automaticroll.jpg)
![](https://filterprocess.com/sites/default/files/biopure_0.jpg)
Bio-Pure®
• Pads, bulk rolls, panels and links available
• Antimicrobial treated and tackified media
• 85 - 90% arrestance
![](https://filterprocess.com/sites/default/files/biopure_0.jpg)
![](https://filterprocess.com/sites/default/files/ht-panel.jpg)
HT™ Panel
• Air Flow 300 FPM
• Initial Static .30" W.G.
• MERV 8 Rating
![](https://filterprocess.com/sites/default/files/ht-panel.jpg)
![](https://filterprocess.com/sites/default/files/activatorseries.jpg)

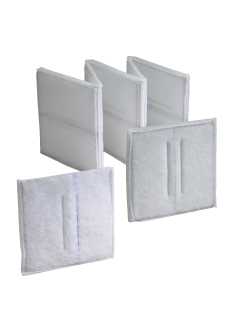

The Activator™ Series
• Ring panels and links available
• 2-ply MERV 6 and 3-ply MERV 7 available
• Self-sealing - no latches required
• Tackified media increases particle retention
![](https://filterprocess.com/sites/default/files/activatorseries.jpg)
![](https://filterprocess.com/sites/default/files/series-n.jpg)
Series N
• Ring panels and links available
• 2-ply MERV 6 available
• Self-sealing – no latches required
• Tackified media increases particle retention
![](https://filterprocess.com/sites/default/files/series-n.jpg)
![](https://filterprocess.com/sites/default/files/slip-on.jpg)
Slip-On
• Three styles available:
• Cut-to-size panels with reusable wire frame
• Replacement sleeves – no frame
• Service Rolls – cut your own sleeves
• Self-sealing, no latches required
![](https://filterprocess.com/sites/default/files/slip-on.jpg)
![](https://filterprocess.com/sites/default/files/capanel.jpg)
CA Panel
• Air Flow 300 FPM
• Initial Static .21” W.G.
• Efficiency Rating: 92.7%
![](https://filterprocess.com/sites/default/files/capanel.jpg)
![](https://filterprocess.com/sites/default/files/ultra-II.jpg)
Ultra II™ Bag
• Air Flow 300 FPM
• Initial Static .24" W.G.
• MERV 8 Rating
• High Dust Holding Capacity
![](https://filterprocess.com/sites/default/files/ultra-II.jpg)
