Single-Bag Filter Housings

BF Series

• Designed for industrial and commercial filter applications.
• Industry Standard #1, #2, #3 and #4 Size Bag Housings.  –
• Available in 316L Stainless Steel, 304L Stainless Steel or Carbon Steel construction for a wide range of chemical compatibility.
• Clamp and Swing Bolt Designs. Ideal for filtration of liquids that recirculate, i.e chilled loops, cooling tower sumps etc…
• Optional 134 epoxy coating for seawater or corrosive applications is available for both BS and BFS Filter Housings.

Download Spec Sheet

Product Image:

Topline Series

TopLine Series
• TOPLINE is the finest single bag filter housing available
• Heavy duty investment-cast components, flow through the top design results in a minimum headroom of unfiltered liquid for easy bag change-out as well as providing optimum sealing of the filter bag.
• A compression seal makes this housing the optimal choice for single pass filtration of your process liquids.
• Carbon Steel or 316 Stainless Steel, Investment Cast design.
• TOPLINE housings come with an exclusive Five Year Warranty
• ASME code UM stamp on standard #1 & #2 designs. ANSI 2” RF Flanges standard.

Download Spec Sheet

Product Image:

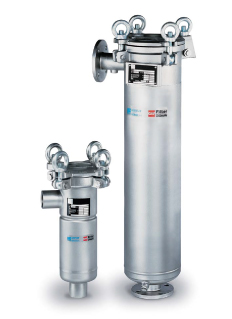

Sideline Series

• SIDELINE housing is a solid, investment-cast filter in the medium that is priced slightly less than the Topline series. .
• SIDELINE housing offers a standard eye-bolt closure and a choice of 2-inch or 3- inch ANSI flanged connections as standard.
• Standard filter bags sizes 01, 02, 03 and 04.
• 304 or 316 stainless steel construction means superior corrosion resistance and consistent performance, year after year. Carbon Steel or 316 Stainless Steel, Investment Cast design.
• ASME code UM stamp on standard #1 & #2 designs.
• ANSI 2” or 3” RF Flanges standard.
• Compression bag hold down. Adapts easily to fit almost any piping layout.

Download Spec Sheet

Product Image:

Flowline Series

• FLOWLINE housing is a good choice for industrial, commercial and OEM applications that do not require a code stamp.
• The standard design is available with threaded or flanged connections.
• All of the features heavy duty applications demand but in a lightweight construction, cost-effective design.
• Available in filter bags sizes 01 and 02.
• Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, fabricated design.
• 2” or 3” NPT or RF Flanges optional.
• Cost effective compared to investment cast products.

Download Spec Sheet

Product Image:

Ecoline Series

• ECOLINE housings have a lightweight design for commercial, OEM, non-hazardous, low pressure applications that do not require a Code Stamp.
• Cost-effective design incorporates a handy V-clamp closure and threaded couplings. The lid is fitted with a 1/4" NPT connection for easy fitting of a vent or gauge.
• Standard filter bags sizes 01, 02, 03 and 04.
• Only available in 304 stainless steel construction offers superior corrosion resistance and consistent performance.
• A smooth, bead-blasted finish makes it easy to completely clean the interior of the housing.
• V-clamp cover closure and side inlet with evacuation cover

Download Spec Sheet

Product Image:

Miniline Series

• MINILINE vessels from Filter Process are designed for self-supported installation.
• Stainless steel construction means years of reliable, precision filtration with no concern about corrosion problems
• MINILINE vessels are available in two different series: EBF for lower pressure applications, and SBF for higher pressure applications.
• Side inlet piping connection
• Sizes for #03 and #04 filter bags, Buna N™ seals standard, 1-1/2" NPT threaded connections.
• Maximum temp/press of 300 psi/250F - Type SBF  Maximum temp/press of 150 psi/250F - Type EBF

Product Image:

Polyline Series

• Polyline All Plastic (non metallic) Construction. Choice of PVC, CPVC, PPL or PVDF construction to meet the needs of all ultra-pure or corrosive applications.
• POLYLINE filter housings have no metal components to rust, corrode or contaminate the process media.
• Housings are available for size 01 or 02 filter bags (PVDF 02 only).
• With a POLYLINE housing you get extra features at no extra cost such as a vent/bleed valve installed on the housing cover and an integral mounting flange for rock solid installation without the need for support legs.
• The hand removable, no tools required, spin off cover makes filter bag changing quick and easy. Just a few turns of the cover using the built-in handle opens and closes the housing with little effort.
• For contamination sensitive or severely corrosive filtration applications, a POLYLINE housing is your best choice. Duplex model available.

Download Spec Sheet

Product Image:
